French compaction presses are customized press systems specifically designed for the compaction molding of granular and powdered materials. They are typically integrated with a precision control package to improve the accuracy and parameter control.
Compaction Presses from 30 to 400 Tons
One of our many compaction press systems (pictured at right, below) offers an adjustable tonnage range from 30 to 400 tons and allows accurate control of pressing speed down to 0.1 inch per minute. The control system for this press utilizes state-of-the art hydraulic and electronic control components and a French-developed custom-programming package.
Custom proposals are available based on your compacting molding press requirements.
French presses are well known for their advanced features, rugged durability and standard deflection levels of 0.001 inch per linear foot. These attributes reduce the number of rejected parts and produce superior quality parts that require fewer costly, time-consuming, post-press finishing operations.
View a Sample of our Compaction Press Designs:

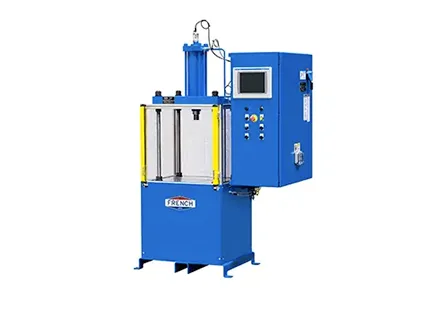

30 Ton Compaction Press
30 Ton Compaction Press
Construction: Column
Molding process: Compaction
Capacity: 2 to 30 Ton
Platen surface size: 18 x 18 inches
Number of openings: 1
Open daylight: 22 inches
Controls: AB Micrologix Processor with a Panel View interface
Press includes built-in lift truck tubes for easy placement

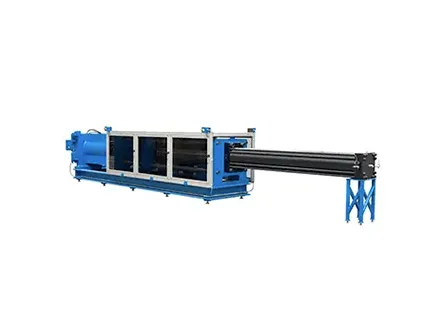

225 Ton Compaction Press
225 Ton Compaction Press
Construction: Horizontal four-post
Molding process: Compaction
Capacity: 225 Ton
Stroke: 70 inches
Controls: AB PLC with a Panel View interface

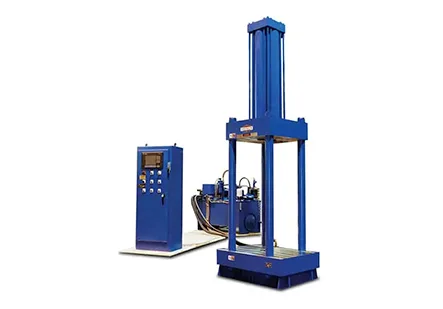

500 Ton Compaction Press
500 Ton Compaction Press
Construction: Four post
Molding process: compaction
Capacity: 500 Ton
Platen surface size: 35 x 35 inches
Number of openings: 1
Open daylight: 94 inches
Controls: AB Micrologix Processor with a Panel View interface
